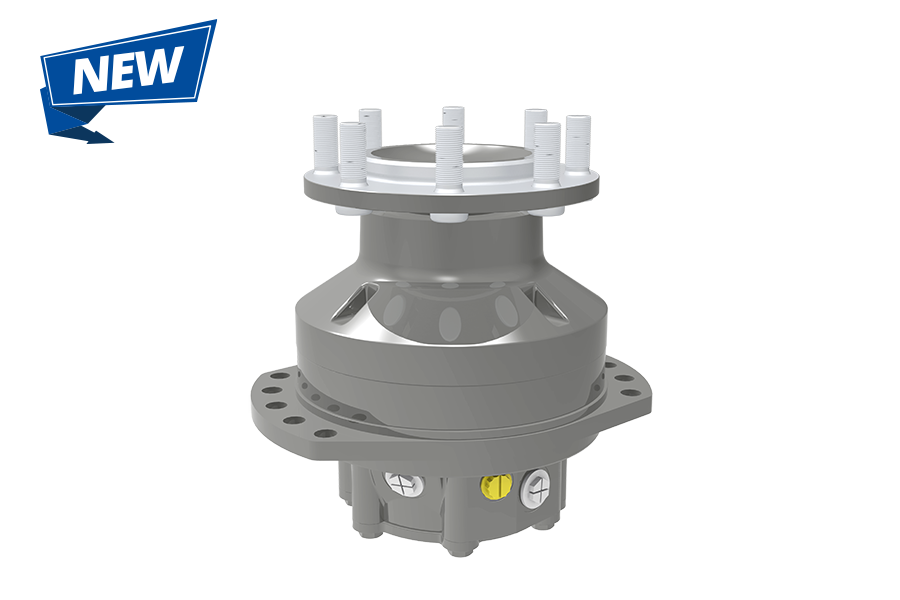

HRP08 Series Radial piston hydraulic motor

Series of pictures

The HRP08 series radial piston hydraulic motor, is a kind of low speed high torque hydraulic motor, disc valve structure, with high pressure, good stability at low speed, high volumetric efficiency and mechanical efficiency, the motor can be equipped with a variety of functional modules.

Displacement：627~1356 cc/rev

Max.differential pressure：400~450 bar

Configuration model/order number

****

Copy to the clipboard

ADD TO CART Catalog download Obtain 3D/2D drawings Export the configured parameters

Open all | Close all

Series advantages

Using tapered roller bearing structure, can support larger axial and radial load.
Advanced disc valve structure,strong automatic compensation ability after wear, to ensure high volumetric efficiency, long life, efficient and stable work.
Various function modules can be selected, such as flushing valve, brake, variable speed valve, speed sensor, etc. to meet the needs of users in various fields.

Technical specifications

Series				HRP08
Motor performance
Displacement			cm3/rev.	627	780	934	1248	1356
Max.torque			N·m	4469	5585	6689	7945	8632
Min.stable speed			rpm	5
Max.speed	Displacement		rpm	200	160	140	100	95
Pressure	Max.differential pressure		bar	450			400
Max.power	Displacement		kW	41
	Variable Displacement		kW	27
Weight	Single speed	With brake	kg	89.632
		Without brake	kg	66.9
	Two speed	With brake	kg	101.832
		Without brake	kg	80.551
Brake
Static braking torque			N·m	9000
Release pressure			bar	12~30
Maximum pressure at brake port Z			bar	30
Oil volume to operate brake			cm3	40
